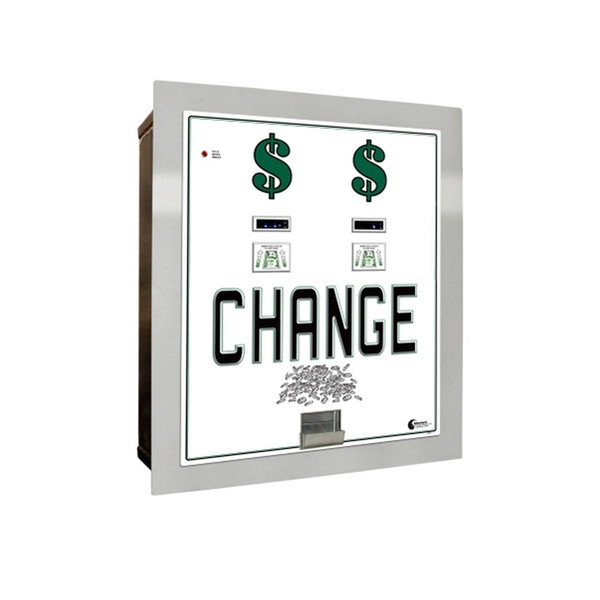

MC640RL-DA Bill Acceptor Change Machine
Rear Load / 4 Coin Hoppers / 2 Bill Acceptors

The MC640RL-DA would be considered a replacement of our Model #SC34RL-DA in the System 600 Series from a capacity standpoint. With four standard coin hoppers totaling up to 12,800 quarters ($1,600 capacity), it can be used in commercial coin laundries, car washes for use with self-serve bays or for vacuums and vendors. The solid welded steel cabinet has a stainless steel faceplate, and two crank locks with Medeco lock plugs for added security. As an added bonus, the MC620RL-DA also comes with the Expanded Function (EF) Module - with an LCD display and push-button inputs, used for programming, diagnostic and audit reporting.

The MC640RL-DA can dispense coins, tokens or a combination of coins and tokens. Some customers have used this model to dispense a combination of Dollar Coins, Quarters, Dimes and Nickels. If you need additional capacity, you can upgrade each standard 3.2K hopper to 5,200 Quarter capacity - giving you a total of up to 20,800 quarters in one machine!

The dual acceptor or "-DA" models feature our Dual Redundancy Feature - which allows communication between both bill acceptors and both coin hoppers. This allows the machine to dispense from both coin hoppers in the case of one bill acceptor being jammed.

Standard Configuration:

• Pyramid Apex-7000 Bill Acceptor
• Accepts: $1, $5, $10 and $20 bills
• EF+ Module
• Capacities:
  • Stackers (x 2 total): 2,000 new bills
  • Hoppers (x 4 total): 12,800 quarters ($3,200)
• Dispenses: Quarters or Tokens
• Two year limited warranty
• ETL certified in accordance with UL and CSA standards

Upgrade Options:

• Bill Acceptor Opening Cover Plate
• Electronic Coin Acceptor
• Medeco Lock Plugs for T-Handle Locks
• MC Series Relay Kit
• Portable Audit Printer Kit
• 5.2K Hopper Capacity Upgrade(s)
• Coin Hopper Locking Hopper Lid(s) (All sizes)
• Non-Resettable Bills In/Coins Out Counter Kit
• Resettable Bills In/Coins Out Counter Kit
• Rear Load Mounting Bracket Kit
• Rear Load Cooling Fan Kit
• Rear Door “Out of Service” Indicator Lamp
• Oversize/Custom Faceplate
• White/Red “TOKENS” Lexan Decal
• Blue Bubbles “CHANGE” Decal
• 180-watt Strip Heater Kit (with Thermostat)
• Transcient Surge Suppressor

Machine Specifications:

• Height: 34" (86.3 cm)
• Width: 29.25" (74.2 cm)
• Depth: 18" (45.7 cm)
• Faceplate: Add 2" (5 cm) on all four sides
• Weight: 366 lbs. (166 kg)
• Footprint (floor area space): 526.5 square in (3.65 square ft; 3391 square cm) = 29.25" (74.2 cm)W x 18" (45.7 cm)D
